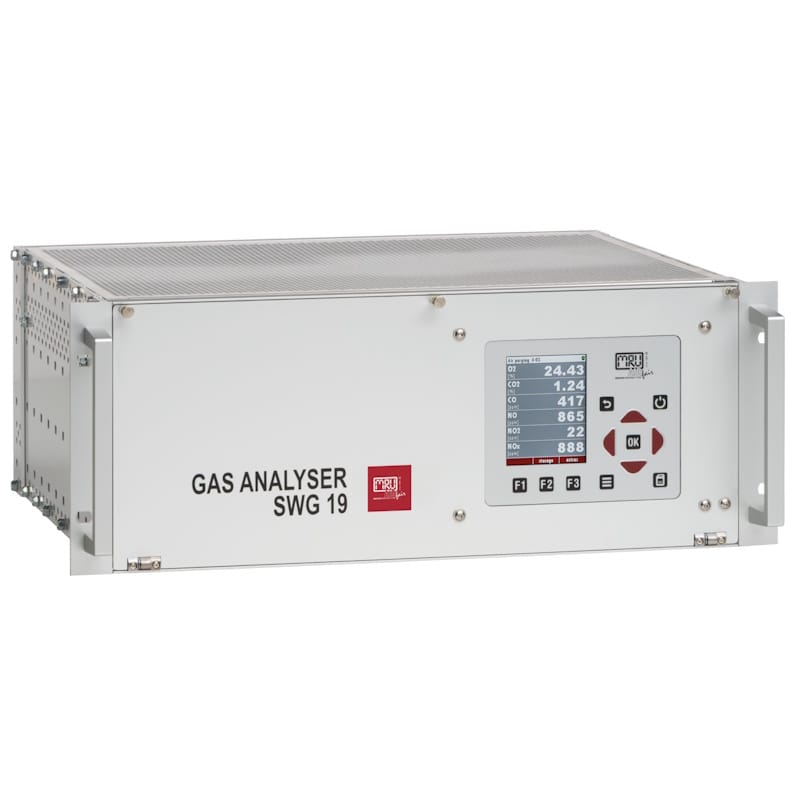

MRU SWG19

MRU SWG19

Stacionarni industrijski analizator z vgradnjo v 19″ omare (rack-mount). Na voljo v različicah COA (optimizacija zgorevanja), CEM (meritve emisij) in Syngas (analiza sinteznega plina z H2)

Šifra artikla

Zaloga

Na zalogi
  • Rack mount – vgradnja v 19″ omare, 4U velikost
  • Potrebna zunanja priprava plina – sušenje in filtracija
  • Vgrajena črpalka z nadziranim in reguliranim pretokom 50 l/h, dovod plina v “bypass” načinu
  • 5x “open-collector” kontakti za preklapljanje med merilnimi mesti
  • Priključki za plin iz nerjavečega jekla 1/8″ notranji navoj
  • RS485 vmesnik za komunikacijo z nadzornim sistemom
  • Opcijski analogni 4..20mA IO moduli
  • 3,5″ barvni LCD zaslon za upravljanje
  • Elektrokemični ali paramagnetni O2 senzor
  • Opcijski toplotni (TCD) H2 senzor – Syngas različica
  • Infrardeča (NDIR) tehnologija za vse ostale pline
CEM Variant (Emission Analysis)
Measurement ComponentsMeasurement MethodMeasuring RangeResolutionAccuracy
Oxygen O2EC0 ... 21%0.01 vol. %±0.2% abs.
Oxygen O2PM0 ... 25%0.01 vol. %±0.1% abs.
Measurement Module: CO / CO2 / NO / NO2 / SO2 / CH4
Carbon Monoxide CONDIR0 ... 175 / 10,000 ppm*1 ppm±10 ppm or 3% of reading**
Carbon Dioxide CO2NDIR0 ... 50%*0.01%±0.1% or 3% of reading**
Nitric Oxide NONDIR0 ... 200 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Nitrogen Dioxide NO2NDIR0 ... 150 / 1,000 ppm*0.1 ppm±1 ppm or 1% of reading**
Sulfur Dioxide SO2NDIR0 ... 150 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Methane CH4NDIR0 ... 500 / 10,000 ppm*1 ppm±10 ppm or 3% of reading**
Measurement Module: CO / CO2 / NO / NO2 / SO2 / C3H8
Carbon Monoxide CONDIR0 ... 175 / 10,000 ppm*1 ppm±2 ppm or 3% of reading**
Carbon Dioxide CO2NDIR0 ... 50%*0.01%±0.1% or 3% of reading**
Nitric Oxide NONDIR0 ... 200 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Nitrogen Dioxide NO2NDIR0 ... 150 / 1,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Sulfur Dioxide SO2NDIR0 ... 150 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Propane C3H8NDIR0 ... 200 / 5,000 ppm*1 ppm±2 ppm or 3% of reading**
Measurement Module: CO / CO2 / NO / NO2 / N2O / SO2 / CH4 / C3H8
Carbon Monoxide CONDIR0 ... 175 / 10,000 ppm*1 ppm±10 ppm or 3% of reading**
Carbon Dioxide CO2NDIR0 ... 50%*0.01%±0.1% or 3% of reading**
Nitric Oxide NONDIR0 ... 200 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Nitrogen Dioxide NO2NDIR0 ... 150 / 1,000 ppm*0.1 ppm±1 ppm or 1% of reading**
Nitrous Oxide N2O (corrected)NDIR0 ... 100 / 500 ppm*0.1 ppm±2 ppm or 3% of reading**
Sulfur Dioxide SO2NDIR0 ... 150 / 4,000 ppm*0.1 ppm±2 ppm or 3% of reading**
Methane CH4NDIR0 ... 500 / 10,000 ppm*1 ppm±10 ppm or 3% of reading**
Propane C3H8NDIR0 ... 200 / 5,000 ppm*1 ppm±2 ppm or 3% of reading**
* Max. measuring range only suitable for short-term exposure.
** The larger value applies.
COA Variant (Combustion Analysis)
Measurement ComponentsMeasurement MethodMeasuring RangeResolutionAccuracy
Oxygen O2EC0 ... 25%0.01 vol. %±0.2% abs.
Oxygen O2PM0 ... 25%0.01 vol. %±0.1% abs.
Measurement Module: CO / CO2 / CH4
Carbon Monoxide CONDIR0 ... 1,000 / 100,000 ppm*1 ppm±10 ppm or 3% of reading**
Carbon Dioxide CO2NDIR0 ... 50%*0.01%±0.1% or 3% of reading**
Methane CH4NDIR0 ... 1,000 / 40,000 ppm*1 ppm±10 ppm or 3% of reading**
Measurement Module: CO / CO2 / C3H8
Carbon Monoxide CONDIR0 ... 3,000 / 30,000 ppm*1 ppm±10 ppm or 3% of reading**
Carbon Dioxide CO2NDIR0 ... 50%*0.01%±0.1% or 3% of reading**
Propane C3H8NDIR0 ... 1,000 / 20,000 ppm*1 ppm±10 ppm or 3% of reading**
* Max. measuring range only suitable for short-term exposure.
** The larger value applies.
Syngas Variant (Syngas Analysis)
Measurement ComponentsMeasurement MethodMeasuring RangeResolutionAccuracy
Oxygen O2EC0 ... 25%0.01 vol. %±0.2% abs.
Oxygen O2PM0 ... 25%0.01 vol. %±0.1% abs.
Hydrogen H2TCD0 ... 50%0.01 vol. %±0.2% abs. or 2% of reading**
Hydrogen Sulfide H2SEC0 ... 1,000 ppm1 ppm±5 ppm abs. or 5% of reading (0...500 ppm)
±15% of reading (≥ 500 ppm)
Measurement Module: CO / CO2 / CH4
Carbon Monoxide CONDIR0 ... 100%0.01%±0.3% or 2% of reading**
Carbon Dioxide CO2NDIR0 ... 100%0.01%±0.3% or 2% of reading**
Methane CH4NDIR0 ... 100%0.01%±0.3% or 2% of reading**
** The larger value applies.
Abbreviation Key: EC = Electrochemical Sensor, NDIR = Non-Dispersive Infrared Spectroscopy, PM = Paramagnetic Sensor, TCD = Thermal Conductivity Detector.
General Technical Data
Controls / Interfaces • 3.5" TFT color display
• Dirt-resistant keyboard, password-protected calibration
• 4 x analog outputs 4–20 mA, galvanically isolated, max. load 500 Ω
• 2 x alarm relays, potential-free contacts 24 Vdc / 5 A
• RS485 digital interface (Modbus RTU)
• RS485 to USB, Ethernet, or Profibus converters (optional)
Gas Conditioning • Stainless steel fittings with 1/8" female thread
• Teflon particle filter
• Gas sampling pump: 50 l/h
• Gas inlet pressure: 0 mbar to +30 mbar
• Gas outlet: Atmospheric pressure
Enclosure Dimensions172 x 482 x 362 mm (H x W x D) without handles and connections
Weight / IP Rating10 kg / IP20
Installation LocationIndoors in analysis cabinet
Ambient Temperature+5 °C ... +45 °C
Enclosure TypeAluminum housing (19" / 4U)
Power SupplyUniversal 100 ... 240 Vac / 47 ... 63 Hz / 60 W
